Cylinders

Hydraulic steering cylinder SP90

Item code: 71090

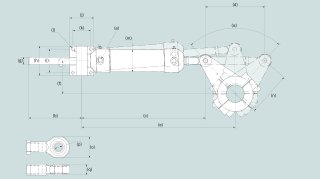

Dimensions Value
(a) 6.35mm / 0.25in
(b) 178.5mm / 7.02in
(c) 366.5mm / 14.42in
(d) 200mm / 7.87in
(e) 465mm / 18.3in
(f) 111.5mm / 4.38in
(g) 20mm / 0.78in
(h) 70mm / 2.75in
(i) 52mm / 2.75in
(j) 60mm / 2.36in
(k) 44mm / 1.73in
(l) 8.5mm / 0.33in
(m) 48mm / 1.88in
(n) 150mm / 5.9in
(o) 32mm / 1.25in
(p) 12mm / 0.47in
(q) 16mm / 0.62in
α 84
Ideal vessel integration Value
Typical vessel class Motor boat, Sail boat
