Rudder arms

Rudder tiller arm shaft Ø45mm bolt Ø14mm, dual

size group 1

Item code: 72851
Rorarm 1 45-14 Dobbel

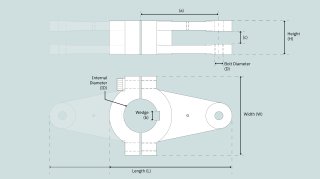

Dimensions Value
(H) Height 55mm / 2.2in
(L) Length 340mm / 13.4in
(W) Width 115mm / 4.5in
(D) Diameter 14mm / 0.6in
(ID) Internal Diameter 45mm / 1.8in
(a) 150mm / 5.9in
(b) 14mm / 0.6in
(c) 22mm / 0.9in
Ideal vessel integration Value
Typical vessel class Commercial vessel, Motor boat, Sail boat
