Rudder arms

Rudder tiller arm shaft Ø65mm bolt Ø16mm, single

size group 2

Item code: 72858
Rorarm 2 65-16 enkel

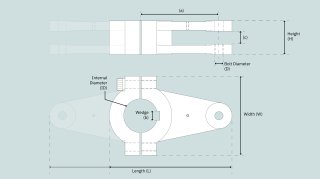

Dimensions Value
(H) Height 64mm / 2.5in
(L) Length 235mm / 9.3in
(W) Width 150mm / 5.9in
(D) Diameter 16mm / 0.62in
(ID) Internal Diameter 65mm / 2.6in
(a) 150mm / 5.9in
(b) 18mm / 0.7in
(c) 26mm / 1in
Ideal vessel integration Value
Typical vessel class Commercial vessel, Motor boat, Sail boat
