Rudder arms

Rudder tiller arm shaft Ø75mm bolt Ø20mm, single

size group 3

Item code: 72866
Rorarm 3 75-20 enkel

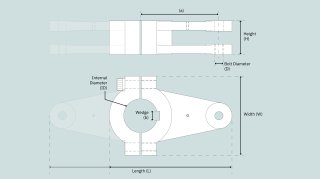

Dimensions Value
(H) Height 82mm / 3.2in
(L) Length 245mm / 9.6in
(W) Width 180mm / 7.1in
(D) Diameter 20mm / 0.8in
(ID) Internal Diameter 75mm / 3in
(a) 150mm / 5.9in
(b) 22mm / 0.9in
Ideal vessel integration Value
Typical vessel class Commercial vessel, Motor boat, Sail boat
