Retract mechanical SRV300 Common
Guide to navigating spare parts
Below you will see the top-level assembly of spare part groupings available to you. If you desire a component within the presented assembly group, click on the name tag below the image to be directed to a detailed spare parts list for that assembly group. If no additional spare parts are available, it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
2
DIN 912 - M4 x 12
Quantity: 4
Bolt,Unbraco
PHOTO NOT AVAILABLE
3
Cable actuator
Item code: 150050
Quantity: 2
-1.png)
PHOTO NOT AVAILABLE
7
DIN 125 - A 13
Quantity: 2
Washer
PHOTO NOT AVAILABLE
9
DIN EN ISO 1234 - 3,2x20
Quantity: 4
Locking pin
PHOTO NOT AVAILABLE
10
Locking bolt
Item code: 140003
Quantity: 2
PHOTO NOT AVAILABLE
11
DIN 913 - M4 x 20
Quantity: 1
Threaded pin
PHOTO NOT AVAILABLE
12
DIN 985 - M4x0,7
Quantity: 1
Lock Nut
PHOTO NOT AVAILABLE
14
M4 x 25 A4
Quantity: 2
Phililps pan head screw
PHOTO NOT AVAILABLE
15
DIN 127 - A 4
Quantity: 2
Spring Lock Washer
PHOTO NOT AVAILABLE
16
DIN 125 - A 4,3
Quantity: 2
Flat Washer
PHOTO NOT AVAILABLE
18
ISO 10642 - M4 x 30
Quantity: 2
Screw
PHOTO NOT AVAILABLE
20
Cable SRV/SRH 300
Item code: 150054
Quantity: 1
PHOTO NOT AVAILABLE
22
1 Retract Horizontal Shaft Kit - 300mm
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
DIN 7991 - M4x12 A4
Quantity: 4
Hex socket countersunk head cap screw
PHOTO NOT AVAILABLE
2
Parallel key DIN 6885
Item code: 140149
Quantity: 4
PHOTO NOT AVAILABLE
3
Lifting arm PS
Item code: 135434
Quantity: 1
PHOTO NOT AVAILABLE
4
DIN 125 - A 29
Item code: 115004
Quantity: 2
PHOTO NOT AVAILABLE
6
Lifting arm SB
Item code: 135433
Quantity: 1
PHOTO NOT AVAILABLE
7
Position marker
Item code: 140197
Quantity: 1
PHOTO NOT AVAILABLE
8
DIN 912 - M5 x 8
Quantity: 2
Bolt Unbraco
2 Upper vertical drive shaft kit SRV300
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
DIN 912 - M6 x 20
Quantity: 1
Bolt, Unbraco
PHOTO NOT AVAILABLE
2
DIN 125 - A 6,4
Quantity: 1
Flat Washer
PHOTO NOT AVAILABLE
3
Tool for ball bearing mounting
Item code: SM153210
Quantity: 1
PHOTO NOT AVAILABLE
4
DIN 471 - 25x1,2
Item code: 113003
Quantity: 1
PHOTO NOT AVAILABLE
5
SKF 2RS1W 61805-2RS1
Item code: SM-137108
Quantity: 1
PHOTO NOT AVAILABLE
6
DIN 472 - 35 x 1,5
Item code: 6 2047
Quantity: 1
PHOTO NOT AVAILABLE
7
Rotary lip seal
Item code: SM188949
Quantity: 2
PHOTO NOT AVAILABLE
8
Slide bearing
Item code: SM155182
Quantity: 1
PHOTO NOT AVAILABLE
9
Vertical drive shaft Assembly
Item code: SM153092
Quantity: 1
PHOTO NOT AVAILABLE
10
DIN EN ISO 1234 - 3,2x12
Quantity: 1
Split lock pin
PHOTO NOT AVAILABLE
11
Lower drive shaft joint
Item code: 140837
Quantity: 1
PHOTO NOT AVAILABLE
12
DIN 7 - 10 x 32 m6
Quantity: 2
Parallel pin
PHOTO NOT AVAILABLE
13
DIN 6885 - A 6 x 6 x 20
Quantity: 1
Key
PHOTO NOT AVAILABLE
14
Pin Ø8 L46,2
Item code: SM-143798
Quantity: 1

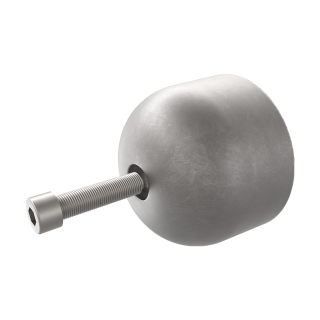

3 Anode kit, aluminium aloy (Al-Zn-In)
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Alu anode
Item code: 10 9998
Quantity: 1
PHOTO NOT AVAILABLE
2
Bolt
Quantity: 1
DIN 912 - M6 x 30
4 Tunnel kit retract Ø300mm TC, complete
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
DIN EN ISO 1234 - 3,2x20
Quantity: 2
Split lock pin
PHOTO NOT AVAILABLE
2
DIN 3771 - 48,9 x 2,62 - NBR
Quantity: 2
O-ring
PHOTO NOT AVAILABLE
3
Turn ring Ø45
Item code: 6 2140
Quantity: 2
PHOTO NOT AVAILABLE
4
Wype Ring
Item code: 140030
Quantity: 2
PHOTO NOT AVAILABLE
5
Tunnel bracket
Item code: 140833
Quantity: 1
PHOTO NOT AVAILABLE
6
DIN EN ISO 1234 - 6,3x44
Quantity: 2
Split lock pin
PHOTO NOT AVAILABLE
7
DIN EN ISO 1234 - 3,2x12
Quantity: 1
Split lock pin
PHOTO NOT AVAILABLE
8
Ø8 x 46,2 mm
Quantity: 1
Pin bolt
PHOTO NOT AVAILABLE
9
Lower drive shaft joint
Item code: 140837
Quantity: 1
PHOTO NOT AVAILABLE
10
DIN 7 - 10 x 32 m6
Quantity: 2
Parallel pin
PHOTO NOT AVAILABLE
11
O-ring 12,5 x 1,8
Quantity: 1
O-ring
PHOTO NOT AVAILABLE
12
Blind plug
Item code: 75088
Quantity: 1
PHOTO NOT AVAILABLE
14
Tunnel
Item code: 140803
Quantity: 1
PHOTO NOT AVAILABLE
16
Bushing for drive pins
Item code: 140958
Quantity: 1
5 Horizontal shaft sealing bushing kit
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
DIN EN ISO 1234 - 3,2x20
Item code: 113005
Quantity: 2
PHOTO NOT AVAILABLE
2
Sleeve bearing Ø50 ø45 L50
Item code: 140060
Quantity: 2
PHOTO NOT AVAILABLE
3
DIN 3771 - 48,9 x 2,62 - NBR
Item code: 6 2141
Quantity: 2
PHOTO NOT AVAILABLE
4
Turn ring Ø45
Item code: 6 2140
Quantity: 2
PHOTO NOT AVAILABLE
5
Wype Ring
Item code: 140030
Quantity: 2
PHOTO NOT AVAILABLE
6
Sleeve bearing Ø32 Ø28 L20
Item code: 140019
Quantity: 2
PHOTO NOT AVAILABLE
7
Thrust Washer Ø48 Ø28 W=1,5 8Igludur X)
Item code: 140020
Quantity: 4
PHOTO NOT AVAILABLE
8
DIN EN ISO 1234 - 6,3x44 (A4)
Item code: 113006
Quantity: 2
PHOTO NOT AVAILABLE
9
Pin Ø8 L46,2
Item code: SM-143798
Quantity: 1
PHOTO NOT AVAILABLE
10
DIN EN ISO 1234 - 3,2x12 (A4)
Item code: 103012
Quantity: 1

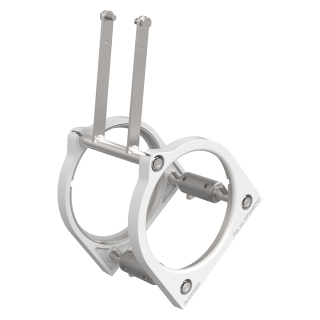

6 Retract ring kit Ø300mm
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Sleeve bearing
Item code: 140024
Quantity: 2
PHOTO NOT AVAILABLE
2
Thrust washer
Item code: 6 2083
Quantity: 4
PHOTO NOT AVAILABLE
3
DIN 933 - M10 x 20 (A4)
Quantity: 2
Hex Head Bolt
PHOTO NOT AVAILABLE
5
DIN 934 - M10 (A4)
Quantity: 8
Nut
PHOTO NOT AVAILABLE
6
DIN 7991 - M10x70 A4
Quantity: 4
Hexagon socket countersunk head cap screws
PHOTO NOT AVAILABLE
7
Connecting rod
Item code: 140807
Quantity: 2
PHOTO NOT AVAILABLE
8
Twist ring
Item code: 140763
Quantity: 2
PHOTO NOT AVAILABLE
9
DIN 125 - A 10,5 (A4)
Quantity: 6
Washer
PHOTO NOT AVAILABLE
10
DIN 985 - M10x1,5 (A4)
Quantity: 6
Lock Nut
7 Gearleg SRV300 replacement kit
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
4
Bushing for drive pins
Item code: 140958
Quantity: 1
8 Gearleg SRV300TC w/out propeller
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
DIN 912 - M10 x 60
Quantity: 2
Bolt, Unbraco
PHOTO NOT AVAILABLE
2
DIN 127 - A 10
Quantity: 2
Spring lock washer
PHOTO NOT AVAILABLE
3
DIN 125 - A 10,5
Quantity: 2
Washer
PHOTO NOT AVAILABLE
5
Bolt w/copper gasket
Item code: 10 1220
Quantity: 1
PHOTO NOT AVAILABLE
7
DIN 125 - A 17
Quantity: 2
Washer
PHOTO NOT AVAILABLE
8
DIN 985 - M16x2
Quantity: 2
Lock Nut
9 Service kit retract 300mm
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Wyper ring
Item code: 141063
Quantity: 1
PHOTO NOT AVAILABLE
2
O-ring 41,28x3,53
Quantity: 1
--
PHOTO NOT AVAILABLE
3
DIN 3760 - AS - 40 x 50 x 7 - NBR - Stainless
Item code: SM167034
Quantity: 2
PHOTO NOT AVAILABLE
4
Inverted Internal Circlip DIN 5008 50x2
Item code: 141265
Quantity: 1
PHOTO NOT AVAILABLE
5
O-ring Ø50x4
Quantity: 2
--
