- Tunnel kit for retract thruster SRV80/100
Other
Tunnel kit for retract thruster SRV80/100
Item code: SM167115
| Sparepart for | Value |
|---|---|
| Accessories, components and spare parts > For thrusters only > Mechanical retract assemblies | 8 0651 12 8 0651 24 |
| Main products > Thrusters > DC > SR_SRV_SRL | SRV100/185T-24V SRVP100/185T-24V SRL100/185T-24V SRVP80/185T-12V SRL80/185T-24V SRLP100/185T-12V SRLP100/185T-24V SRLP80/185T-12V SRLP80/185T-24V SRVP80/185T-24V |

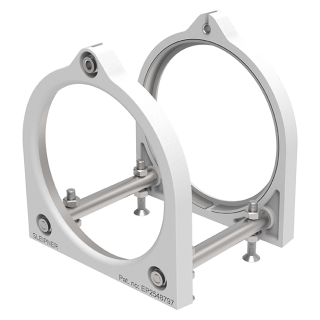

Tunnel kit for retract thruster SRV80/100
Guide to navigating spare parts
Below you will see the top-level assembly of spare part groupings available to you. If you desire a component within the presented assembly group, click on the name tag below the image to be directed to a detailed spare parts list for that assembly group. If no additional spare parts are available, it means that the current assembly group must be purchased as a whole due to service or installation requirements.
DIN EN ISO 1234 - 3,2x20
Twist ring
Ø6 x 45,5mm
Drive shaft lower link
DIN EN ISO 1234 - 3,2x12
Bushing SRV joint
Wype Ring Ø28
Turn ring
Tunnel
DIN 912 - M8 x 50
DIN 3771 - 32 x 1,5 - NBR
Sealing holder
Lifting plate
DIN 985 - M8x1,25
Locking pin

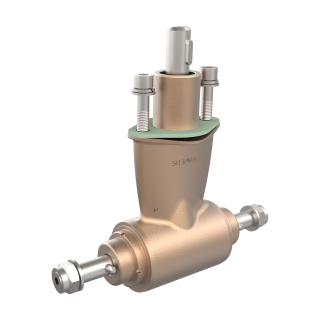

1 Gearleg SE80/100 w/out propeller
DIN 912 - M8 x 55
DIN 127 - A 8
DIN 125 - A 8,4
Drive pin
Propeller washer SS2324
DIN 985 - M12x1,75
2 Anode, aluminium SE60/80/100
Anode, aluminium
Bolt - DIN 6912 - M6 x 16
Disclaimer
Sleipner warranties the original spare parts supplied only. The installer alone has responsibility for the installation of the spare parts. Do not attempt to fit replacement parts unless you are competent. If the spare part is fitted incorrectly, Sleipner Group will not be liable for any damage resulting.
The information given in the document was correct at the time it was published. However, Sleipner Group cannot accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifications without notice. Consequently, Sleipner Group cannot accept liability for any possible differences between product and document.
-
