- ERL130 eVision retract bow/stern thruster 24V
Unless you vessel is prepared from the builder with a custom base, you will need the mold-in base for installing your retract.
Thrusters
ERL130 eVision retract bow/stern thruster 24V
130kg variable thrust
-
S-LINK™
S-Link™ is a CAN-based control system used for communication between Sleipner products installed on a vessel.
- Compact and waterproof plugs
- Keyed and color-coded connectors to ensure correct and easy installation
- Different cable lengths, extenders and T-connectors makes the system scalable and flexible to install
-
Q-PROP™
The Q-PROP™ has measured noise reductions of up to 75% in controlled environments. The five-bladed skew propeller reduces noise levels while maintaining exceptional efficiency. Some thruster models even see an increase in thrust power.
- The expected noise reduction in average installations: 20-40%
- Upgrade kits are available for most Sleipner thruster models with special adaptors
-
PRO™
A PRO™ thruster system enables you to apply only the necessary power to complete your maneuver. The variable speed control eliminates the noise associated with standard on/off thrusters.
The system also includes a practical hold-function. In a dual system (bow and stern) a single press of a button will keep you alongside the docks - making docking truly a one-person job.
Speed controlled thrusters are the best choice for joystick interaction. -
OVERHEAT PROTECTION
When high temperatures are detected, On/off thrusters are automatically shut off to prevent overheating. PRO™ thrusters with speed control provide extended run-time by derating power to maintain temperature within safe levels.
-
GALVANIC SEPARATION
Immersed parts exposed to seawater are galvanic isolated from the onboard electrical system, eliminating stray currents.
-
SEALED DRIVE LUBRICATION
The thruster gearleg is pre-filled for lifetime lubrication and sealed using a long-time mechanical seal with ceramic and carbon surfaces for ultimate security against water intrusion.
-
FLEXIBLE COUPLING
Flexible coupling protects the product’s driveline by compensating for minor misalignments between the shafts of the thruster motor and gearleg.
-
TWIN PROPELLERS
Twin propellers can provide more thrust than a single propeller system in the same tunnel diameter. We use this system in our mid-range models, where high thrust is required in small tunnel diameters. Due to the compact design and high performance, the twin models have become the thrusters of choice among boatbuilders worldwide.
Item code: ERL130/250T-24V
The ERL130 is a highly efficient, compact, lightweight retract thruster suitable for boats between 42-62 feet. The integrated inverter for variable speed control makes for a quick and easy installation.
ERL130 has the new 6-phase PMSM synchronous motor made explicitly for marine thruster use, delivering performance and runtime never seen before in a DC thruster. The unit is compact with bevel gears, making it perfect for boats with limited height space.
- Up to 50% lighter
- Compact design
- Industry-leading runtime
- Active air cooling
X-Yachts on Sleipner’s ERV100 Thrusters for the XC-47 Sailboat
X-Yachts shares their experience with Sleipner’s advanced ERV100 retract thrusters, highlighting the ease of single-handed sailing with proportional control and the hold function. Discover why Sleipner’s technology is their trusted choice for precision and solo sailing.
Properties
S-LINK™
S-Link™ is a CAN-based control system used for communication between Sleipner products installed on a vessel.
- Compact and waterproof plugs
- Keyed and color-coded connectors to ensure correct and easy installation
- Different cable lengths, extenders and T-connectors makes the system scalable and flexible to install
Q-PROP™
The Q-PROP™ has measured noise reductions of up to 75% in controlled environments. The five-bladed skew propeller reduces noise levels while maintaining exceptional efficiency. Some thruster models even see an increase in thrust power.
- The expected noise reduction in average installations: 20-40%
- Upgrade kits are available for most Sleipner thruster models with special adaptors
PRO™
A PRO™ thruster system enables you to apply only the necessary power to complete your maneuver. The variable speed control eliminates the noise associated with standard on/off thrusters.
The system also includes a practical hold-function. In a dual system (bow and stern) a single press of a button will keep you alongside the docks - making docking truly a one-person job.
Speed controlled thrusters are the best choice for joystick interaction.
OVERHEAT PROTECTION
When high temperatures are detected, On/off thrusters are automatically shut off to prevent overheating. PRO™ thrusters with speed control provide extended run-time by derating power to maintain temperature within safe levels.
GALVANIC SEPARATION
Immersed parts exposed to seawater are galvanic isolated from the onboard electrical system, eliminating stray currents.
SEALED DRIVE LUBRICATION
The thruster gearleg is pre-filled for lifetime lubrication and sealed using a long-time mechanical seal with ceramic and carbon surfaces for ultimate security against water intrusion.
FLEXIBLE COUPLING
Flexible coupling protects the product’s driveline by compensating for minor misalignments between the shafts of the thruster motor and gearleg.
TWIN PROPELLERS
Twin propellers can provide more thrust than a single propeller system in the same tunnel diameter. We use this system in our mid-range models, where high thrust is required in small tunnel diameters. Due to the compact design and high performance, the twin models have become the thrusters of choice among boatbuilders worldwide.
| Weight | Value |
|---|---|
| Net weight | 92.5kg / 203.9lbs |
| Battery | Value |
|---|---|
| Operational voltage | ["24V", ""] |
| Cold Cranking Amps (CCA) | Value |
|---|---|
| Minimum battery CCA (DIN) | 300 |
| Minimum battery CCA (SAE) | 570 |
| Minimum battery CCA (EN) | 510 |
| Compliance | Value |
|---|---|
| CE | Yes |
| UKCA | Yes |
| Current draw | Value |
|---|---|
| Standard current draw | 300A |

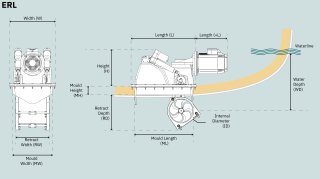

| Dimensions | Value |
|---|---|
| (H) Height | 389mm / 15.3in |
| (+H) Additional Height | 9mm / 0.35in |
| (L) Length | 687mm / 27.04in |
| (+L) Additional Length | 281mm / 11in |
| (W) Width | 480mm / 18.90in |
| (ID) Internal Diameter | 250mm / 9.84in |
| (WD min.) Minimum Water Depth | 250mm / 9.84in |
| (RD) Retract Depth | 378mm / 14.7in |
| (RW) Retract Width | 349mm / 13.7in |
| (MW) Mould Width | 417mm / 16.3in |
| (MH) Mould Height | 97mm / 3.8in |
| Electrical Data Matrix | Value |
|---|---|
| Recommended fuse | ANL 250 |
| Ideal vessel integration | Value |
|---|---|
| Typical vessel class | Motor boat, Sail boat |
| Typical vessel size | 13-19m / 42-62ft |
| Installation capability | Value |
|---|---|
| Bow Capability | Yes |
| Stern Capability | Yes |
| Retractable Capability | Yes |
| External Mounting Capability | No |
| Tunnel Capability | No |
| Motor | Value |
|---|---|
| Voltage electric motor | 24V DC |
| Power Output | 5.1kW / 6.8hp |
| Performance | Value |
|---|---|
| Items operating power source | Electric |
| Product Features | Value |
|---|---|
| Intelligent Power Control | No |
| Q-Propeller | Yes |
| Single Propeller | No |
| Twin Propellers | Yes |
| Twin Counter Rotating Propellers | No |
| Gravity Feed Lubrication | No |
| Sealed Drive Lubrication | Yes |
| Galvanic Separation | Yes |
| IP - Ignition Protection | No |
| PRO - Variable Speed Control | Yes |
| S-Link | Yes |
| Analog | No |
| Splash-Proof | No |
| Flexible Coupling | Yes |
| Safe Start-Up | No |
| DC Electrical | Yes |
| Hold Thrust | No |
| Ceramic Seals | Yes |
| Patented Design | No |
| Intelligent Power Control Plus | Yes |
| Thrust ratings | Value |
|---|---|
| Thrust at 24V | 130kg / 284lbs |
| Thrust at 21V | 130kg / 284lbs |
-
STL.file ERL130/250T-24V closed thruster - simplified
CAD FileEnglishstl -
PDF.file ERL130/250T-24V metadata
Technical drawingEnglishpdf -
STL.file ERL130/250T-24V open thruster - simplified
CAD FileEnglishstl -
STP.file ERL130/250T-24V closed thruster - simplified
CAD FileEnglishstp -
STP.file ERL130/250T-24V open thruster - simplified
CAD FileEnglishstp -
Installation Manual, ERV (130&170&210)
Installation ManualEnglishpdf -
User Manual, Retract E-Vision
User ManualEnglishpdf -
Joystick integration overview for Sleipner thruster systems
Service/Support ManualEnglishpdf -
User Manual, Retract E-Vision - FRENCH
User ManualFrenchpdf -
User Manual, Retract E-Vision - SPANISH
User ManualSpanishpdf -
User Manual, Retract E-Vision - ITALIAN
User ManualItalianpdf -
User Manual, Retract E-Vision - GERMAN
User ManualGermanpdf -
Doc Declaration of conformity (CE) - eVision
Conformity Certificatepdf -
DoC Declaration of conformity (UK) - eVision
Conformity Certificatepdf
ERL130 eVision retract bow/stern thruster 24V

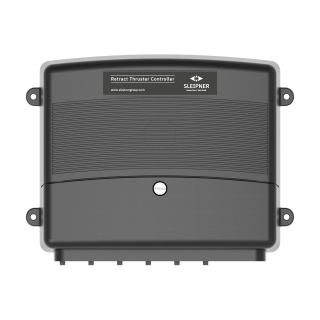

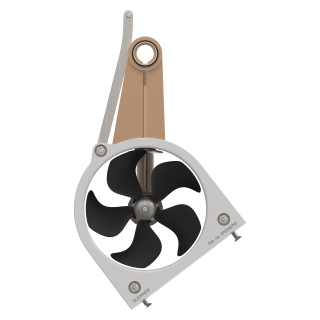

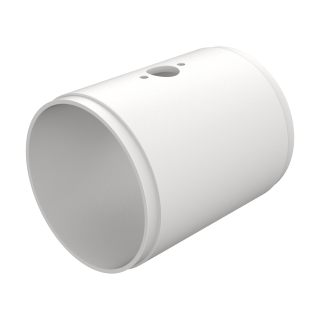

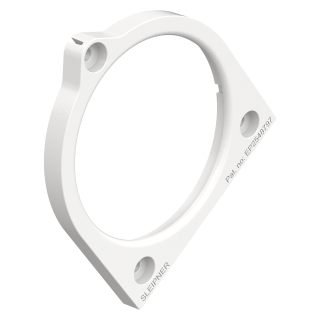

Guide to navigating spare parts
Below you will see the top-level assembly of spare part groupings available to you. If you desire a component within the presented assembly group, click on the name tag below the image to be directed to a detailed spare parts list for that assembly group. If no additional spare parts are available, it means that the current assembly group must be purchased as a whole due to service or installation requirements.
DIN 912 - M10 x 35
DIN 125 - A 10,5
Flexible coupling
Adapter flange
DIN 6885 - A 5 x 5 x 20
DIN 933 - M10 x 25

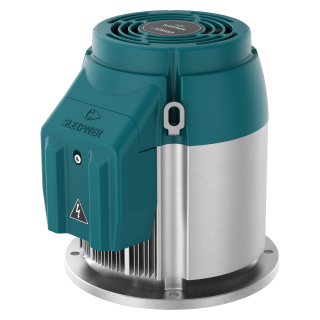

1 M40- 24 V eVision Mseries motor
DIN 912 - M6 x 20
DIN 127 - A 6
Lifting bracket
DIN 6885 - A 6 x 6 x 22

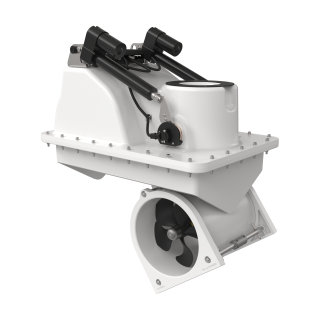

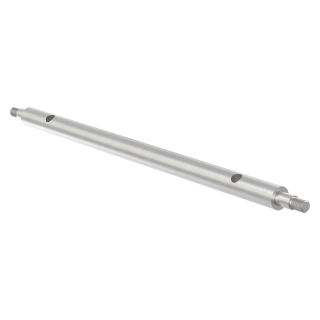

2 Retract mechanical SRV130/24V
Lifting arm complete SB
DIN 912 - M8 x 50
DIN 127 - A 8
DIN 125 - A 8,4
DIN 985 - M8 x 1,25
Flexible drive shaft
-1.png)

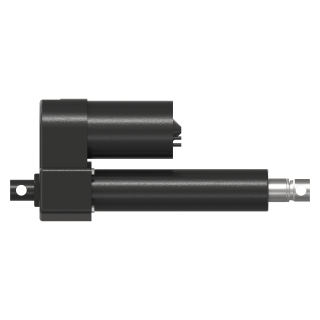

Cable actuator
