Thrusters
SX35 external stern thruster 12V
35kg thrust, on/off, <=50mm hull, w/controller
-
Q-PROP™
The Q-PROP™ has measured noise reductions of up to 75% in controlled environments. The five-bladed skew propeller reduces noise levels while maintaining exceptional efficiency. Some thruster models even see an increase in thrust power.
- The expected noise reduction in average installations: 20-40%
- Upgrade kits are available for most Sleipner thruster models with special adaptors
-
INTELLIGENT POWER CONTROL
Sleipner's patented intelligent power control provides a minimal delay between drive directions to reduce wear of the mechanical parts while monitoring solenoid functions. In the case of a solenoid lock-in, the thruster will automatically stop without extra user action or controlling the main switch.
-
IGNITION PROTECTION
Ignition-protected products are compliant with ISO 8846 to operate safely in hazardous environments where gasoline vapors or other flammable gases might be present.
-
OVERHEAT PROTECTION
When high temperatures are detected, On/off thrusters are automatically shut off to prevent overheating. PRO™ thrusters with speed control provide extended run-time by derating power to maintain temperature within safe levels.
-
ANALOG
Sleipner analog signal cables with Plug & Play connectors are color-coded to match the wiring diagrams with high-quality connectors to ensure a correct installation.
-
GALVANIC SEPARATION
Immersed parts exposed to seawater are galvanic isolated from the onboard electrical system, eliminating stray currents.
-
SEALED DRIVE LUBRICATION
The thruster gearleg is pre-filled for lifetime lubrication and sealed using a long-time mechanical seal with ceramic and carbon surfaces for ultimate security against water intrusion.
-
SINGLE PROPELLER
A properly engineered single propeller will be the most energy efficient thruster. Its compact design fits easily into narrow bows making it the perfect match for our smaller thruster range.
Item code: SX35/140-12V-50MM
SX35 is our most compact thruster yet, with 35-42 kg thrust. Its versatile design allows for installation on boats of any hull shape up to 32 feet in length.
The external unit is easy to mount. No GRP work is necessary on boats with a hull thickness of up to 50 mm.
Remote control is a popular accessory. See some of the important product and safety features below.
The compact SX models are available in four configurations that allow a vast array of installation options in the bow and stern of the boat.
1. Standard stern thruster
The most compact stern thruster on the market. Minimal height and width requirements.

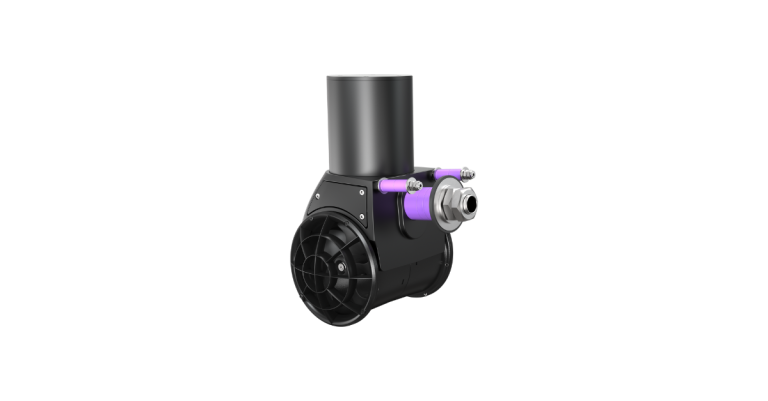

2. Stern thruster with protection grids
An optimal solution for increased safety during watersport activities or for vessels used in waters with debris or drifting objects.
3. Stern thruster with cowls
Many vessels have a hull design requirement on the boat's transom that disturbs the water flow to and from the stern thruster, thus making it less efficient. The adjustable cowls direct the water flow to be less disturbed, obtain a higher efficiency level, and allow a shallow installation closer to the waterline.
4. Hydropod bow- and stern thruster
With the hydropod low-drag cover, the SX can be mounted under the hull in the water flow for low- and mid-speed vessels. The optimal design adds minimal drag and will, in most installations, not be noticeable. The in-flow configuration is perfect for boats where it is difficult to fit a tunnel thruster or, for example, as a stern thruster for cruising sailboats.
Features
Ultra-compact
Fits where others won't. The SX's versatile installation possibilities and small size make it a perfect choice for vessels whose inside configuration does not allow a standard thruster installation.
Easy installation
Only requires drilling three small holes with a minimal footprint on the hull. No fiberglass work is necessary. Compatible with standard Side-Power products, control panels, and accessories.
Minimal noise emission
With a short and optimally designed tunnel, vibration-absorbing sleeves on all hull connections, 5-bladed Q-Prop™, and the fully submerged unit, the thruster operates remarkably quietly.
Safety
Ignition protected. It can advantageously be installed in stern locations/ on high-octane fuel gasoline boats due to a hermetically sealed housing. ISO 8846 and UL 1500 certified. Galvanic isolation kit for metal/aluminum hulls and safety protection grids available as accessories.
Long run times
The external placement of the unit provides a more efficient water cooling and allows a prolonged duration per cycle of the unit than with traditional bow and stern thrusters. Even longer run times in the PRO™ version when running at reduced speed.
Optimal efficiency
The optimum efficiency of the SX models results from a shorter transverse channel and ideal leverage created by more profound and remote positioning away from the pivot point. Provide up to 40 percent higher efficiency than conventional tunnels.
