Retract mechanical SRV80/100 24V
Item code: 8 0651 24
| Sparepart for | Value |
|---|---|
| Main products > Thrusters > DC > ERL | ERL100/185T-24V |
| Main products > Thrusters > DC > SR_SRV_SRL | SRV100/185T-24V SRV80/185T-24V SRVP100/185T-24V SRL100/185T-24V SRL80/185T-24V SRVP80/185T-24V SRLP100/185T-24V SRLP80/185T-24V |
Retract mechanical SRV80/100 24V
Guide to navigating spare parts
Below you will see the top-level assembly of spare part groupings available to you. If you desire a component within the presented assembly group, click on the name tag below the image to be directed to a detailed spare parts list for that assembly group. If no additional spare parts are available, it means that the current assembly group must be purchased as a whole due to service or installation requirements.

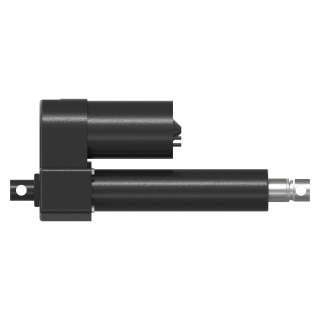

Actuator kit 24V
1 Horizontal shaft SRV 185mm
DIN EN ISO 1234 - 3,2x20
Lifting arm complete BB
Packing box
O-ring
Locking nut
Sleeve bearing Ø32 ø28 L20
Seal kit horisontal shafts
Sliding washer
DIN EN ISO 1234 - 3,2x33
Thrust washer
DIN EN ISO 1234 - 3,2x12
Shaft for sensor
2 Adapter water proof SRV
Adaptor for seals SRV sensor
O-ring Ø14x3mm
Composite shaft for SRV sensor
O-ring Ø18x3mm
DIN 125 - A 4,3
ISO 7045 - M4 x 40
ISO 7045 - M4 x 55
3 Vertical shaft SRV 185mm
Bearing seal holder
Lock washer
O-ring
Lock nut
DIN 6912 - M6 x 25
DIN 125 - A 6,4
Tool for Ball bearing mounting
DIN 471 - 25x1,2
Rotary Lip Seal
SKF 2RS1W 61805-2RS1
Bushing Drive Shaft
DIN 6885 - A 5 x 5 x 16
Flexible drive shaft
DIN EN ISO 1234 - 3,2x12
Drive shaft lower link
Locking pin
Bushing SRV joint

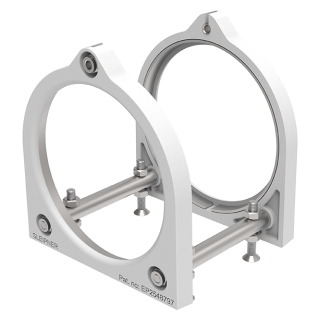

4 Tunnel kit for retract thruster SRV80/100
DIN EN ISO 1234 - 3,2x20
Twist ring
Ø6 x 45,5mm
Drive shaft lower link
DIN EN ISO 1234 - 3,2x12
Bushing SRV joint
Wype Ring Ø28
Turn ring
Tunnel
DIN 912 - M8 x 50
DIN 3771 - 32 x 1,5 - NBR
Sealing holder
Lifting plate
DIN 985 - M8x1,25
Locking pin
5 Anode, aluminium SE60/80/100
Anode, aluminium
Bolt - DIN 6912 - M6 x 16
6 Gearleg SE80/100 w/out propeller
DIN 912 - M8 x 55
DIN 127 - A 8
DIN 125 - A 8,4

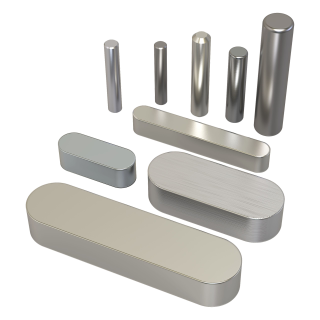

Drive pin
Propeller washer SS2324
DIN 985 - M12x1,75
