- SRV100 retract bow/stern thruster 12V
Unless you vessel is prepared from the builder with a custom base, you will need the mold-in base for installing your retract.
Thrusters
SRV100 retract bow/stern thruster 12V
100kg thrust, on/off
-
S-LINK™
S-Link™ is a CAN-based control system used for communication between Sleipner products installed on a vessel.
- Compact and waterproof plugs
- Keyed and color-coded connectors to ensure correct and easy installation
- Different cable lengths, extenders and T-connectors makes the system scalable and flexible to install
-
Q-PROP™
The Q-PROP™ has measured noise reductions of up to 75% in controlled environments. The five-bladed skew propeller reduces noise levels while maintaining exceptional efficiency. Some thruster models even see an increase in thrust power.
- The expected noise reduction in average installations: 20-40%
- Upgrade kits are available for most Sleipner thruster models with special adaptors
-
INTELLIGENT POWER CONTROL
Sleipner's patented intelligent power control provides a minimal delay between drive directions to reduce wear of the mechanical parts while monitoring solenoid functions. In the case of a solenoid lock-in, the thruster will automatically stop without extra user action or controlling the main switch.
-
OVERHEAT PROTECTION
When high temperatures are detected, On/off thrusters are automatically shut off to prevent overheating. PRO™ thrusters with speed control provide extended run-time by derating power to maintain temperature within safe levels.
-
ANALOG
Sleipner analog signal cables with Plug & Play connectors are color-coded to match the wiring diagrams with high-quality connectors to ensure a correct installation.
-
GALVANIC SEPARATION
Immersed parts exposed to seawater are galvanic isolated from the onboard electrical system, eliminating stray currents.
-
SEALED DRIVE LUBRICATION
The thruster gearleg is pre-filled for lifetime lubrication and sealed using a long-time mechanical seal with ceramic and carbon surfaces for ultimate security against water intrusion.
-
FLEXIBLE COUPLING
Flexible coupling protects the product’s driveline by compensating for minor misalignments between the shafts of the thruster motor and gearleg.
-
TWIN PROPELLERS
Twin propellers can provide more thrust than a single propeller system in the same tunnel diameter. We use this system in our mid-range models, where high thrust is required in small tunnel diameters. Due to the compact design and high performance, the twin models have become the thrusters of choice among boatbuilders worldwide.
Item code: SRV100/185T-12V
SRV100 is a sturdy retract thruster with 100-116 kg thrust, suitable for boats between 35-55 feet.
The thruster is mounted on a flange and has a fast deployment and retraction time. The unit is designed for vertical installation, making it perfect for boats with available height space.
A remote control is a popular accessory. See some of the important product and safety features below.
Retractable thrusters cause no drag
If you have a performance boat, sail, or power, and you're worried about the smallest amounts of drag, a retractable thruster is a perfect solution for you.
Sleipner's retractable thrusters work with all types of propulsion systems – DC, AC, and hydraulic – and can be installed in the bow and the stern of the boat. Available as standard (on/off) or PRO™ with variable speed control extending from 80 kg to 650 kg of thrust.
Like all Sleipner products, the retractable thrusters are made with high safety standards. Safety is important in product design, from build quality to ease of installation, to ensure long-term reliability.

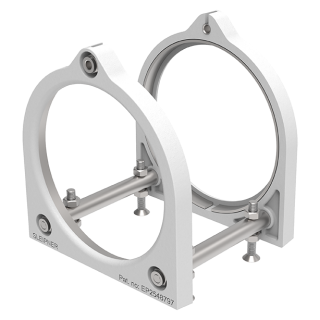

There are three versions of the retractable thrusters, one designed to be directly molded in and two designed to be mounted on a flange. The flange can be a mold-in base from Sleipner, or boat builders can use materials suitable for their hull or as part of their hull design.
The flange-mounted models have the thruster unit placed in a casing that can be bolted to a base. This makes installing the thrusters in hulls made from different materials easier. It also simplifies series production, as it avoids the need to mix laminating and engineering jobs.
Quick deployment
The thrusters with a tunnel diameter of 185 mm use one fast and powerful actuator. In comparison, the models with a diameter of 250 mm and 386 mm have two actuators to handle the increased forces while maintaining the same exceptionally fast deployment time.
Features
- Fitted as bow and/or stern thruster
- Quiet operation
- Plug & Play S-Link™ two way communication control cable wiring
- Motor assembly rigid mounted on retracting casing: no moving parts during retracting operation
- Compact size
- Reliable retracting mechanism avoids sticking
- Fast deployment
- Easy-to-use control panel with status feedback from thruster
- Available as PRO with variable speed control
The retract mechanism
The unique design of the underwater mechanism has only a few, but very solid parts, contributing to the stability of the unit. The unit's design makes the thruster as compact as possible while enabling safe use of heavier motors on more powerful units. The vertical installation of the motor (SRV) reduces shock forces on the unit in extreme waves compared to motors mounted at an angle.
Properties
S-LINK™
S-Link™ is a CAN-based control system used for communication between Sleipner products installed on a vessel.
- Compact and waterproof plugs
- Keyed and color-coded connectors to ensure correct and easy installation
- Different cable lengths, extenders and T-connectors makes the system scalable and flexible to install
Q-PROP™
The Q-PROP™ has measured noise reductions of up to 75% in controlled environments. The five-bladed skew propeller reduces noise levels while maintaining exceptional efficiency. Some thruster models even see an increase in thrust power.
- The expected noise reduction in average installations: 20-40%
- Upgrade kits are available for most Sleipner thruster models with special adaptors
INTELLIGENT POWER CONTROL
Sleipner's patented intelligent power control provides a minimal delay between drive directions to reduce wear of the mechanical parts while monitoring solenoid functions. In the case of a solenoid lock-in, the thruster will automatically stop without extra user action or controlling the main switch.
OVERHEAT PROTECTION
When high temperatures are detected, On/off thrusters are automatically shut off to prevent overheating. PRO™ thrusters with speed control provide extended run-time by derating power to maintain temperature within safe levels.
ANALOG
Sleipner analog signal cables with Plug & Play connectors are color-coded to match the wiring diagrams with high-quality connectors to ensure a correct installation.
GALVANIC SEPARATION
Immersed parts exposed to seawater are galvanic isolated from the onboard electrical system, eliminating stray currents.
SEALED DRIVE LUBRICATION
The thruster gearleg is pre-filled for lifetime lubrication and sealed using a long-time mechanical seal with ceramic and carbon surfaces for ultimate security against water intrusion.
FLEXIBLE COUPLING
Flexible coupling protects the product’s driveline by compensating for minor misalignments between the shafts of the thruster motor and gearleg.
TWIN PROPELLERS
Twin propellers can provide more thrust than a single propeller system in the same tunnel diameter. We use this system in our mid-range models, where high thrust is required in small tunnel diameters. Due to the compact design and high performance, the twin models have become the thrusters of choice among boatbuilders worldwide.
| Weight | Value |
|---|---|
| Net weight | 51kg / lbs |
| Cold Cranking Amps (CCA) | Value |
|---|---|
| Minimum battery CCA (DIN) | 750 |
| Minimum battery CCA (SAE) | 1425 |
| Minimum battery CCA (EN) | 1320 |
| Current draw | Value |
|---|---|
| Standard current draw | 740A |

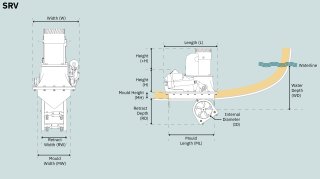

| Dimensions | Value |
|---|---|
| (H) Height | 243mm / 9.56in |
| (+H) Additional Height | 226mm / 8.91in |
| (L) Length | 561mm / 22.09in |
| (W) Width | 359mm / 14.14in |
| (ID) Internal Diameter | 185mm / 7.28in |
| (WD min.) Minimum Water Depth | 185mm / 7.28in |
| (RD) Retract Depth | 276mm / 10.85in |
| (RW) Retract Width | 195mm / 7.66in |
| (MW) Mould Width | 257mm / 10.11in |
| (MH) Mould Height | 62mm / 2.43in |
| Electrical Data Matrix | Value |
|---|---|
| Recommended fuse | ANL 500 |
| Ideal vessel integration | Value |
|---|---|
| Typical vessel class | Motor boat, Sail boat |
| Typical vessel size | 12-17m / 35-55ft |
| Installation capability | Value |
|---|---|
| Bow Capability | Yes |
| Stern Capability | Yes |
| Retractable Capability | Yes |
| External Mounting Capability | No |
| Tunnel Capability | No |
| Motor | Value |
|---|---|
| Voltage electric motor | 12V DC |
| Power Output | 6.3kW / 8.4hp |
| Performance | Value |
|---|---|
| Items operating power source | Electric |
| Product Features | Value |
|---|---|
| Intelligent Power Control | Yes |
| Q-Propeller | Yes |
| Single Propeller | No |
| Twin Propellers | Yes |
| Twin Counter Rotating Propellers | No |
| Gravity Feed Lubrication | No |
| Sealed Drive Lubrication | Yes |
| Galvanic Separation | Yes |
| IP - Ignition Protection | No |
| PRO - Variable Speed Control | No |
| S-Link | Yes |
| Analog | Yes |
| Splash-Proof | No |
| Flexible Coupling | Yes |
| Safe Start-Up | No |
| DC Electrical | Yes |
| Hold Thrust | No |
| Ceramic Seals | Yes |
| Patented Design | No |
| Safety | Value |
|---|---|
| Safety features | * Electronic time-lapse device protects against sudden change of drive direction. * The electric thermal cut-off switch in electromotor protects against overheating (auto-reset when electro motor cools down). * Flexible coupling between electro-motor and driveshaft protects electromotor and gear system if propeller jams. * Original Sidepower panels shut off automatically 6 minutes after last use. * Original Sidepower panels use child-safe double ON buttons. * An integrated microprocessor monitors solenoids, reduce wear and risk of solenoid lock-in. * Auto-stop of the thruster occurs when an undesirable solenoid lock-in occurs or when continuous operation cut-off timer exceeds 3 minutes. Depending on the panel type after a certain time not in use, the console will shut down and retract the thruster. (NB: the thruster will retract automatically when turned off .) |
| Thrust ratings | Value |
|---|---|
| Thrust at 12V | 116kg / 256lbs |
| Thrust at 10.5V | 100kg / 220lbs |
-
CE Declaration of conformity (Doc) - DC - thrusters
Conformity CertificateEnglishpdf -
XT.fil SRV100-185T closed Side-Power tunnel thruster ( 3D simple version)
CAD FileEnglishx-t -
Installation Manual, SR SE L&V (SRL/V80, SRL/V100)
Installation ManualEnglishpdf -
Video Sleipner Technical Replacing Drive Line Seal
Installation VideosEnglishmp4 -
Product specification sheet_DC_thrusters
Product sheetEnglishpdf -
STP.fil SRV100/185T-12V - SRVP100 Vertical Retract 12V - open
CAD FileEnglishstp -
IGS.fil SRV100-185T closed Side-Power tunnel thruster ( 3D simple version)
CAD FileEnglishigs -
STP.fil SRV100-185T closed Side-Power tunnel thruster ( 3D simple version)
CAD FileEnglishstp -
Joystick integration overview for Sleipner thruster systems
Service/Support ManualEnglishpdf -
User Manual, SR and SR ignition protected (SR, SR IP)
User ManualEnglishpdf -
DWG.fil SRV100-185T open Vertical Retractable, 12V - Side-Power thrusters
CAD FileEnglishdwg
SRV100 retract bow/stern thruster 12V
Guide to navigating spare parts
Below you will see the top-level assembly of spare part groupings available to you. If you desire a component within the presented assembly group, click on the name tag below the image to be directed to a detailed spare parts list for that assembly group. If no additional spare parts are available, it means that the current assembly group must be purchased as a whole due to service or installation requirements.
DIN 912 - M10 x 25
DIN 125 - A 10,5
Power cable-black L=800mm
Power cable-red L=800mm
1 Elektromotor mont. SRV100-12V
Electric motor
DIN 933 - M6 x 12
DIN 6798 - A 6,4
Brushes for motor (kit)
Brushes spring for motor (kit)
Temp switch
2 Retract mechanical SRV80/100 12V
3 Solenoid cover kit SE100/130-12V
Solenoid cover
4 Actuator kit 12v Retract 185-250mm
Grommet kit
Locking bolt
DIN 125 - A 13
DIN EN ISO 1234 - 3,2x20
5 Horizontal shaft SRV 185mm
DIN EN ISO 1234 - 3,2x20
Lifting arm complete BB
Packing box
O-ring
Locking nut
Sleeve bearing Ø32 ø28 L20
Seal kit horisontal shafts
Sliding washer
DIN EN ISO 1234 - 3,2x33
Thrust washer
DIN EN ISO 1234 - 3,2x12
Shaft for sensor
6 Adapter water proof SRV
Adaptor for seals SRV sensor
O-ring Ø14x3mm
Composite shaft for SRV sensor
O-ring Ø18x3mm
DIN 125 - A 4,3
ISO 7045 - M4 x 40
ISO 7045 - M4 x 55
7 Vertical shaft SRV 185mm
Bearing seal holder
Lock washer
O-ring
Lock nut
DIN 6912 - M6 x 25
DIN 125 - A 6,4
Tool for Ball bearing mounting
DIN 471 - 25x1,2
Rotary Lip Seal
SKF 2RS1W 61805-2RS1
Bushing Drive Shaft
DIN 6885 - A 5 x 5 x 16
Flexible drive shaft
DIN EN ISO 1234 - 3,2x12

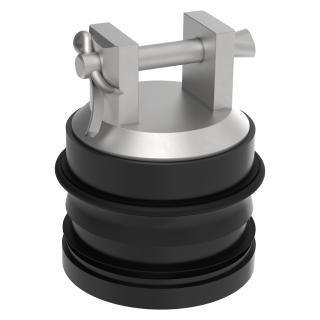

Drive shaft lower link
Locking pin
Bushing SRV joint
8 Tunnel kit for retract thruster SRV80/100
DIN EN ISO 1234 - 3,2x20
Twist ring
Ø6 x 45,5mm
Drive shaft lower link
DIN EN ISO 1234 - 3,2x12
Bushing SRV joint
Wype Ring Ø28
Turn ring
Tunnel
DIN 912 - M8 x 50
DIN 3771 - 32 x 1,5 - NBR
Sealing holder
Lifting plate
DIN 985 - M8x1,25
Locking pin
9 Anode, aluminium SE60/80/100
Anode, aluminium
Bolt - DIN 6912 - M6 x 16
10 Gearleg SE80/100 w/out propeller
DIN 912 - M8 x 55
DIN 127 - A 8
DIN 125 - A 8,4

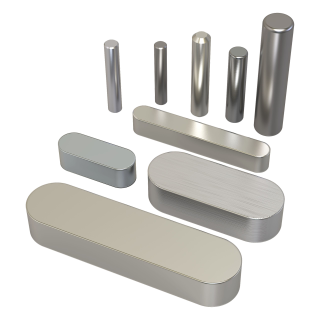

Drive pin
Propeller washer SS2324
DIN 985 - M12x1,75
